DC24V 36W CV Dali Dimmable Led Driver 100-240V Input 0-100% Flicker - Free

Product Categories
Shenzhen Way Far Technical Co., Ltd
Contact Now

DC24V 36W CV Dali Dimmable Led Driver 100-240V Input 0-100% Flicker - Free

Brand Name : LTECH

Model Number : DALI-36-24-F1P1

Certification : CE/Rohs

Place of Origin : China

MOQ : 10

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 1000

Packaging Details : White box

Material : Plastic

Color : White

Voltage input : AC 100-240V

Voltage output : 24V

Feature : Dali dimmable power driver

Output power : 36W

Contact Now

Dali Dimmable Driver 100-240V input,DC24V 36W CV Constant Voltage Power Driver​

LED Intelligent Driver

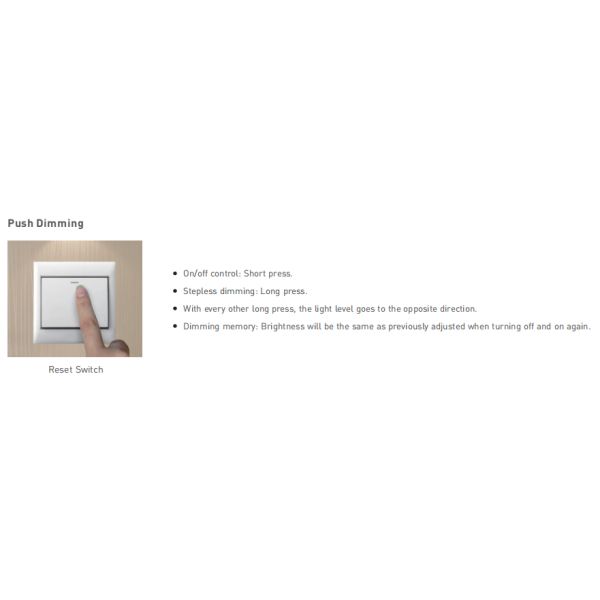

  • Dimming interface:DALI, Push Dim.
  • Dimming range from 0-100%, LED start at 0.1% possible.
  • 0-100% flicker - free, achieve the level of exemption assessment.
  • DALI dimming curve: liner curve or logarithmic curve.
  • Over - heat / Over load / Shor circuit protection, recover automatically.
  • Class 2 power supply, full protective plastic housing.
  • DALI bus standard: IE62386-101,102,207.
  • Compliant with Safety Extra Low Voltage standard.
  • Suitable for indoor I/II/ III type lamps application.

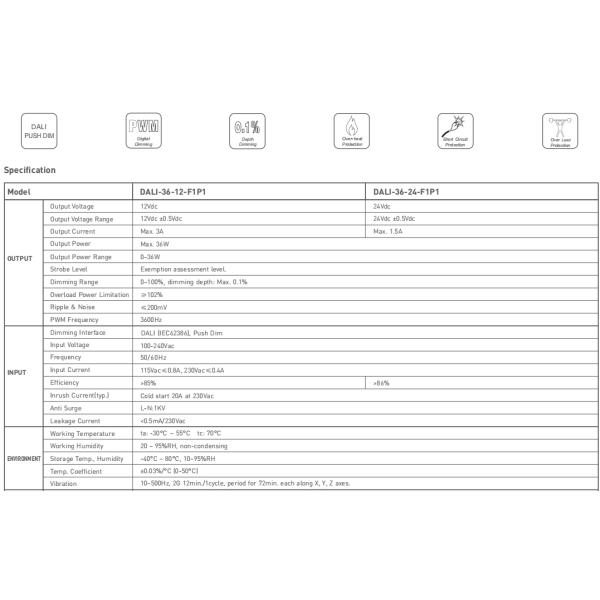

Model: DALI-36-24-F1P1
Dimming interface: DALI/PUSH DIM
Dimming range: 0-100% LED Startup Current<0.1%
Input voltage: 100-240Vac
Output voltage: 24VDC
Output power: Max. 36W
Output current:

Max. 1.5A

DC24V 36W CV Dali Dimmable Led Driver 100-240V Input 0-100% Flicker - Free

DC24V 36W CV Dali Dimmable Led Driver 100-240V Input 0-100% Flicker - Free

DC24V 36W CV Dali Dimmable Led Driver 100-240V Input 0-100% Flicker - Free

DC24V 36W CV Dali Dimmable Led Driver 100-240V Input 0-100% Flicker - Free

DC24V 36W CV Dali Dimmable Led Driver 100-240V Input 0-100% Flicker - Free

DALI-36-12 24-F1P1.pdf
